Maya Notes Plugin: Persistent Scene Annotations with Custom Node Architecture

Developed by Ryan Wang
Technical Support from Claude (Anthropic)
View on GitHub →

Overview

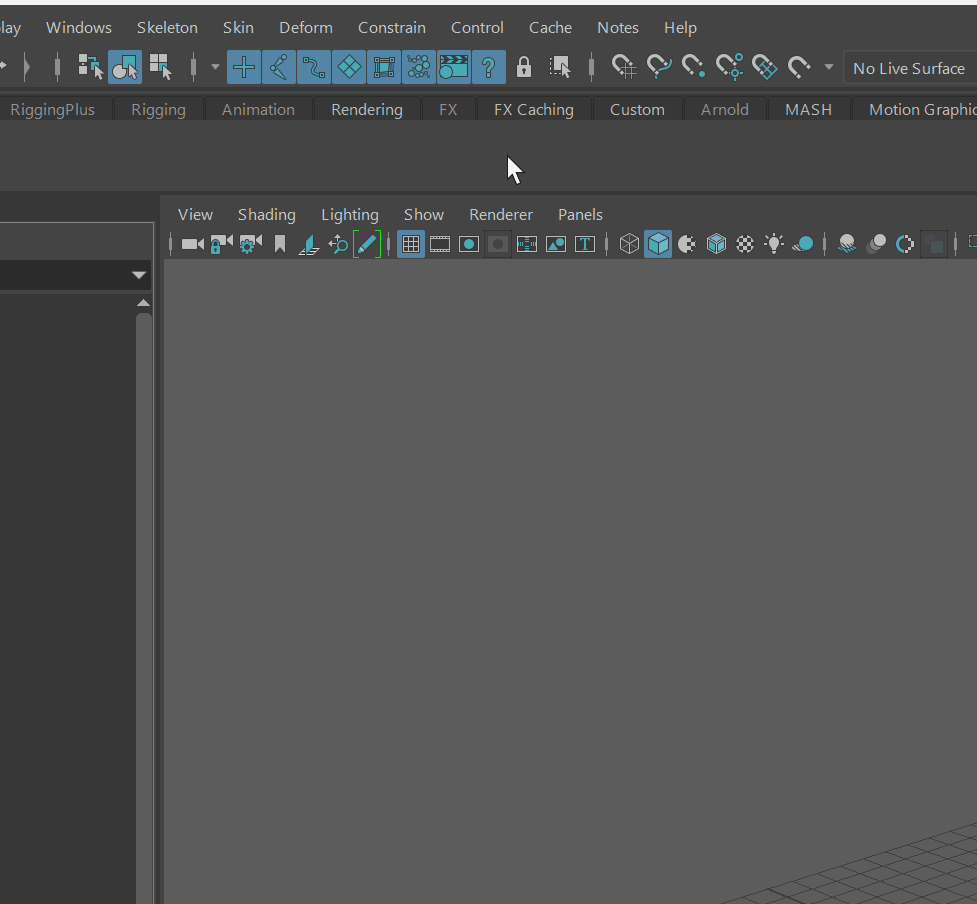

Maya Notes Plugin is a production-ready tool that embeds persistent text annotations directly into Maya scene files using a custom locator node architecture. The plugin provides a floating, always-on-top text editor with real-time viewport display, enabling artists to document scene state, leave TODO lists, and maintain project continuity—eliminating the need for external documentation files that become desynchronized from scene files.

Problem & Motivation

Pain Points Solved:

Lost Context: Opening a scene weeks later with no memory of what needs to be done or what's broken
No Native Note Storage: Maya has no built-in system for scene-level annotations—artists resort to external text files that get lost or outdated
Collaboration Friction: Team members can't see previous artist's notes, leading to duplicate work or missed issues
TODO Management: No centralized place to track incomplete work within the scene itself

This plugin transforms Maya scenes into self-documenting files where notes travel with the scene, ensuring every artist who opens the file knows exactly what to work on next.

Technical Architecture

Custom Node Design (Maya API 2.0)

Built using MPxLocatorNode base class with custom attributes:

noteText (String): Main annotation content
noteTitle (String): Human-readable identifier
displayInViewport (Boolean): Toggle viewport overlay
fontSize (Integer): Viewport text size (8-72pt)
textColor (RGB): Customizable display color

Viewport 2.0 Draw Override

Implements MPxDrawOverride for real-time viewport text rendering:

prepareForDraw(): Extracts node attributes via MPlug API
addUIDrawables(): Renders text overlay using MUIDrawManager
Supports multi-line display with automatic line breaking

Qt-Based Editor Interface

PySide2 dialog with WindowStaysOnTopHint flag:

Auto-positions to right side of Maya window on startup
Dropdown selector for switching between multiple note nodes
Plain text editor with Courier font for code/script snippets
Real-time attribute synchronization via cmds.setAttr()

Organizational Structure

Notes are organized under a locked "NOTES" group in the outliner:

Transform nodes automatically named "note_[Title]" based on content
Group transforms locked to prevent accidental movement
Clean outliner hierarchy for easy scene management

Implementation Methods

1. Maya API 2.0 Plugin Registration

def maya_useNewAPI():
    pass  # Forces Maya to use API 2.0

def initializePlugin(obj):
    plugin = om2.MFnPlugin(obj, "Notes Plugin", "1.0", "Any")
    plugin.registerNode(
        kPluginNodeName,
        kPluginNodeId,
        NotesNode.creator,
        NotesNode.initialize,
        om2.MPxNode.kLocatorNode
    )


2. Attribute Creation with Function Sets

tAttr = om2.MFnTypedAttribute()
NotesNode.noteText = tAttr.create("noteText", "nt", om2.MFnData.kString)
tAttr.writable = True
tAttr.storable = True  # Persists in .ma/.mb files
NotesNode.addAttribute(NotesNode.noteText)


3. Viewport Drawing Pipeline

def prepareForDraw(self, objPath, cameraPath, frameContext, oldData):
    node = objPath.node()
    plug = om2.MPlug(node, NotesNode.noteText)
    data['text'] = plug.asString()  # Extract attribute value
    return data

def addUIDrawables(self, objPath, drawManager, frameContext, data):
    drawManager.setColor(om2.MColor(color))
    drawManager.text(position, text, omr2.MUIDrawManager.kCenter)


4. Qt Signal-Slot Event Handling

self.nodeCombo.currentIndexChanged.connect(self.loadNote)
saveBtn.clicked.connect(self.saveNote)

def saveNote(self):
    cmds.setAttr(self.currentNode + ".noteTitle", title, type="string")
    cmds.setAttr(self.currentNode + ".noteText", text, type="string")


5. Auto-Startup Integration

cmds.evalDeferred(showNotesEditor)  # Open editor after Maya loads
cmds.pluginInfo("notesPlugin", edit=True, autoload=True)  # Auto-load on startup


Key Features

Scene-Embedded Storage: Notes saved directly in .ma/.mb files—no external files needed
Always-On-Top Editor: Stays visible while working in viewport
Auto-Launch: Editor opens automatically when Maya starts
Multiple Notes: Create unlimited notes per scene with dropdown switching
Viewport Overlay: Display notes as 3D text overlays (toggleable)
Organized Outliner: Notes grouped under locked "NOTES" parent for clean hierarchy
Dynamic Naming: Transform nodes auto-rename based on note title

Use Cases

Production TODO Lists: Track incomplete animations, broken rigs, or placeholder assets
Technical Documentation: Store setup instructions, script snippets, or render settings
Collaboration Notes: Leave messages for other artists about scene state or known issues
Version Control: Document what changed between scene versions
Asset Handoff: Include rigging instructions or deformation warnings for animators

Current Limitations

Viewport Performance: Text rendering may impact FPS with many notes visible
Limited Formatting: Plain text only—no rich text or Markdown support
No Search: Must manually browse notes via dropdown
Single Editor Instance: Can't view multiple notes simultaneously

Future Development

Enhanced UI: Dockable editor panel, tabbed interface for multiple notes, search/filter functionality
Rich Text Support: Markdown rendering, code syntax highlighting, embedded images
Template System: Pre-defined note templates for common tasks (shot checklist, rig QA, etc.)
Timeline Integration: Frame-specific notes that appear at keyframes
Export/Import: Batch export notes to PDF/HTML reports
Cloud Sync: Optional cloud backup for notes across team members
Asset Browser: Scene-wide note overview panel with categorization

Impact

Maya Notes Plugin demonstrates how custom node architecture can extend Maya's core functionality to solve real production pain points. By embedding documentation directly into scene files, it eliminates the context-switching cost of external note-taking tools and ensures critical information never gets lost. This is especially valuable in team environments where scene handoffs are common, or for solo artists returning to projects after long breaks.

Tech Stack

Python 3 Maya API 2.0 OpenMaya OpenMayaUI OpenMayaRender PySide2 (Qt) MPxLocatorNode MPxDrawOverride

Project Type: Production Tool Development
Status: Active Development
Developed: November 2024

Technical References

Autodesk. (2023). Maya Python API 2.0 Reference. Available at: Maya API Documentation
Autodesk. (2023). Viewport 2.0 API for Python. Available at: Viewport 2.0 Documentation
Qt Company. (2024). PySide2 Documentation. Available at: PySide2 Docs
"Developed with technical assistance from Claude (Anthropic)."
