AutoRig: Deep Learning-Based Automatic Joint Placement for 3D Character Rigging

Overview

AutoRig is a machine learning system that automates skeletal joint placement for 3D bipedal characters using PointNet architecture. The system enables a one-click rigging solution by converting FBX models to point clouds, predicting 21 joint locations, and generating rigging-ready skeletons in Maya—eliminating the need for manual joint placement that requires extensive anatomical knowledge and rigging expertise.

Problem & Motivation

Traditional auto-rigging tools like Advanced Skeleton and Rigify still require users to manually place joints—a tedious process that demands deep knowledge of anatomy and joint deformation. This creates a significant barrier for 3D artists, modelers, and animators who lack rigging specialization. AutoRig solves this by automatically predicting and placing joints, making character rigging accessible to all skill levels.

Technical Pipeline

FBX Model → Point Cloud Conversion → PointNet Prediction → Maya Joint Creation

1. Input: T-posed bipedal character (FBX format)
2. Conversion: FBX converted to NPZ point cloud (2048 scattered points)
3. Normalization: Model scaled to [-1, 1] range and centered
4. Prediction: PointNet processes point cloud and outputs 21 joint locations
5. Denormalization: Joints transformed back to original scale
6. Output: Maya script creates joints at predicted locations

Implementation Details

Model: Vanilla PointNet (PyTorch)
Training Data: 48 Mixamo T-posed characters + 1 test model
Training: 50 epochs (< 10 seconds)
Point Cloud: 2048 points per model (scattered sampling)
Output: 21 core skeletal joints (spine, arms, legs, head—no fingers/toes/face)
Accuracy: < 0.05 unit error in normalized space
Libraries: PyTorch, NumPy, Matplotlib, JSON

Results

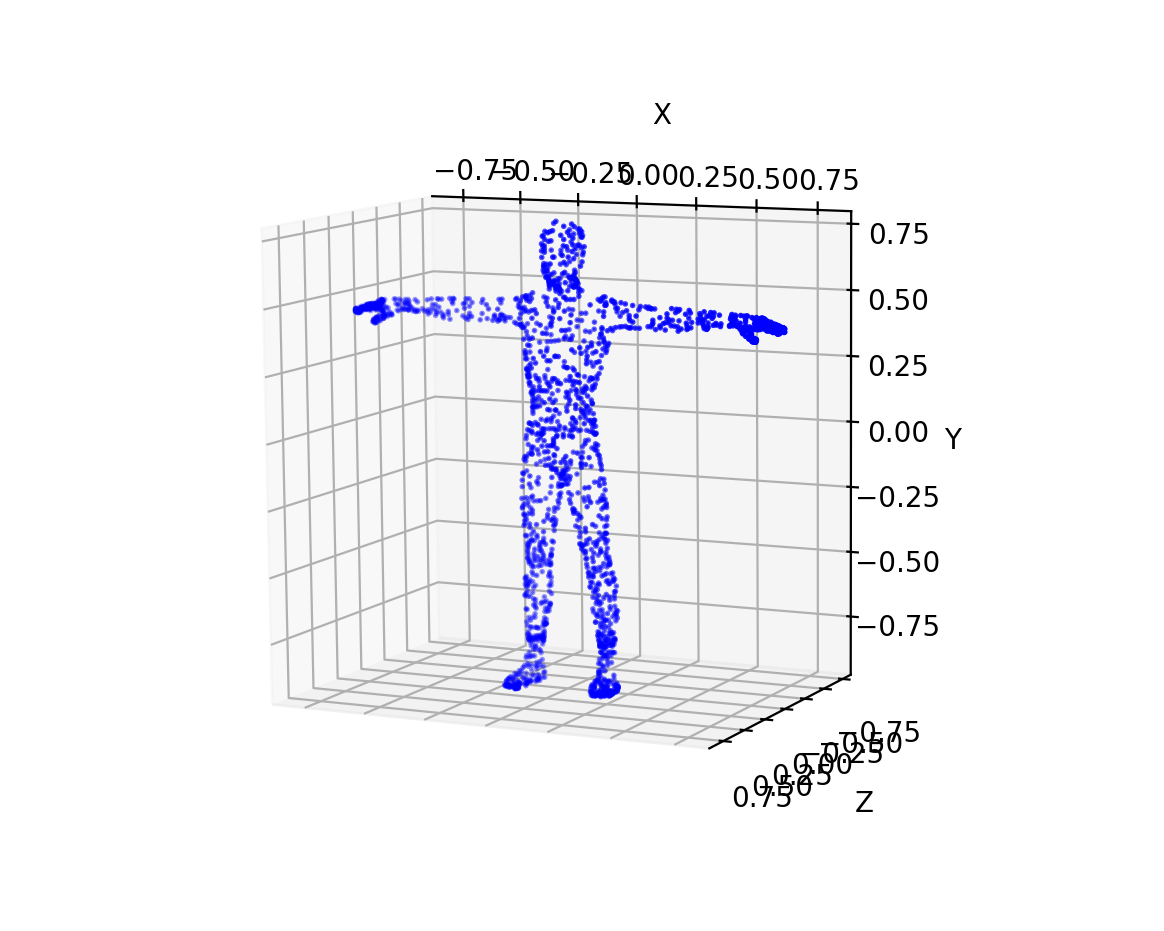

pointcloud visualization of converted FBX

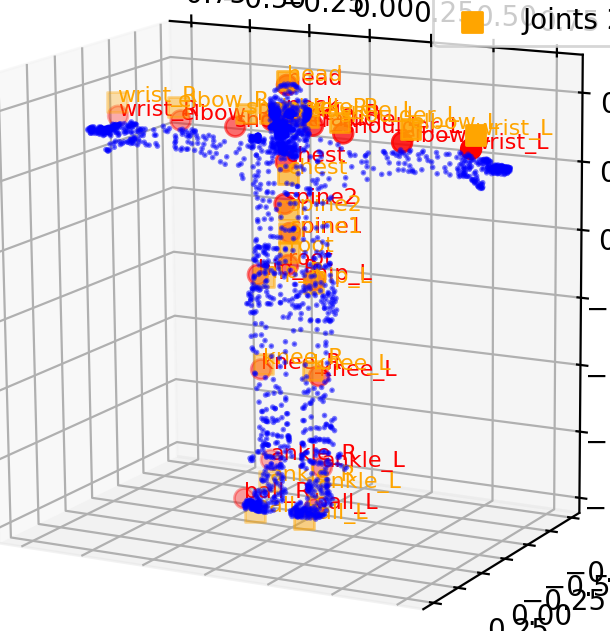

pointcloud visualization with predicted and original joints (Red joints are predicted joints, Orange joints are original)

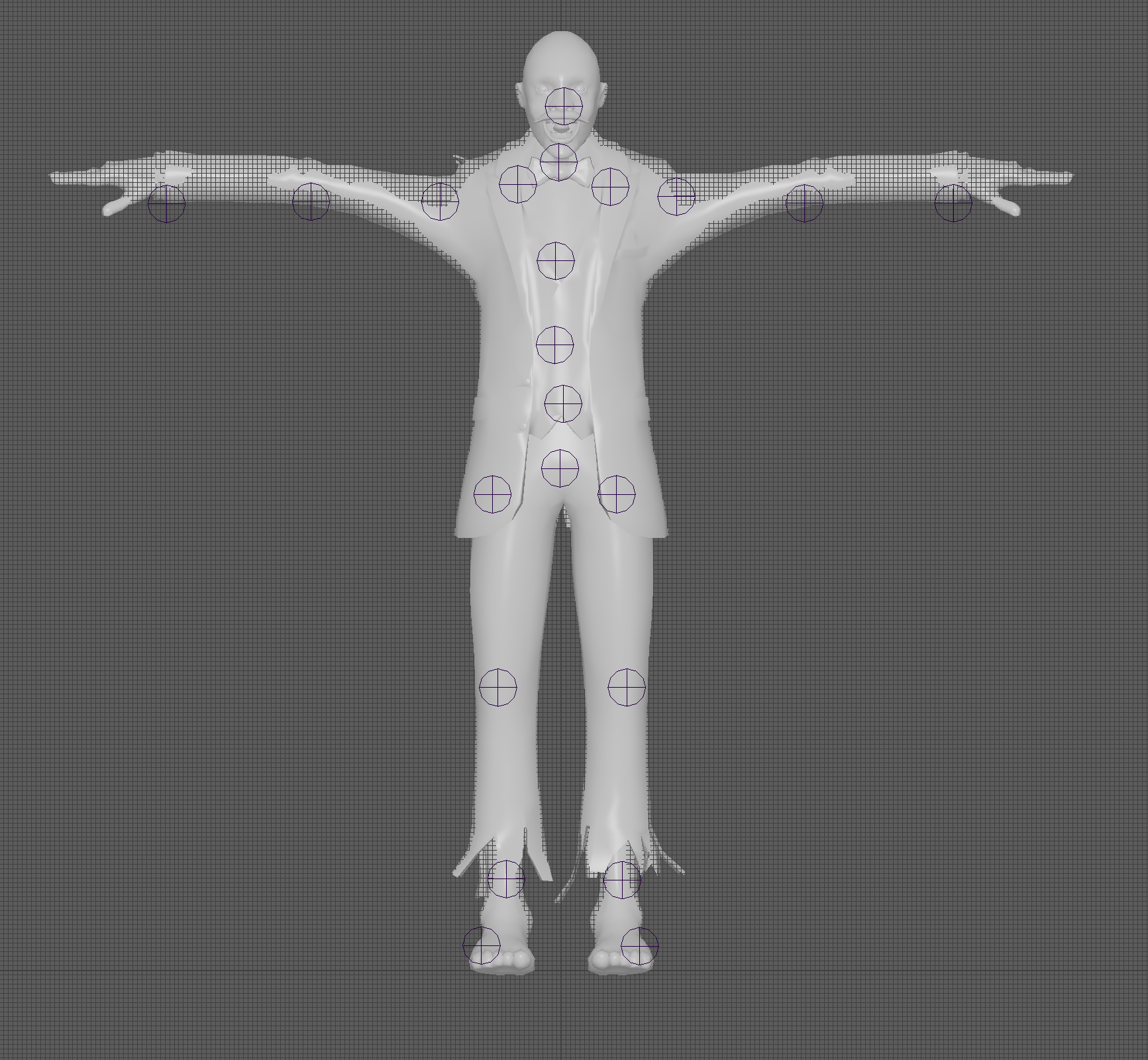

joints imported to Maya and applied to example character mesh

The model achieves sub-0.05 unit accuracy with real-time inference speed, successfully predicting joint locations that can be directly imported into Maya for rigging workflows.

Current Limitations

• Pose Restriction: Only works with T-posed characters
• Arm Joint Accuracy: Reduced precision on arm joint placement
• Asymmetry Issues: Lower accuracy on asymmetrical models
• Limited Coverage: No fingers, toes, heel, toe, or facial joints

Future Development

• Expand training dataset to 500+ models
• Upgrade to PointNet++ architecture for better local feature extraction
• Support multiple poses (A-pose, relaxed pose)
• Add finger, toe, and facial joint prediction (45+ additional joints)
• Integrate full auto-rigging: skin binding and control rig generation
• Develop native Maya/Blender plugins for in-software workflow
• Combine ML with traditional algorithm-based refinement

Impact

AutoRig demonstrates that deep learning can significantly lower the technical barrier for character rigging, transforming a multi-hour manual process into a one-click solution. This enables artists without rigging expertise to focus on creative work while maintaining production-quality skeletal setups.
